Wall & Ceiling Suspension

Technical Data Sheet

1 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

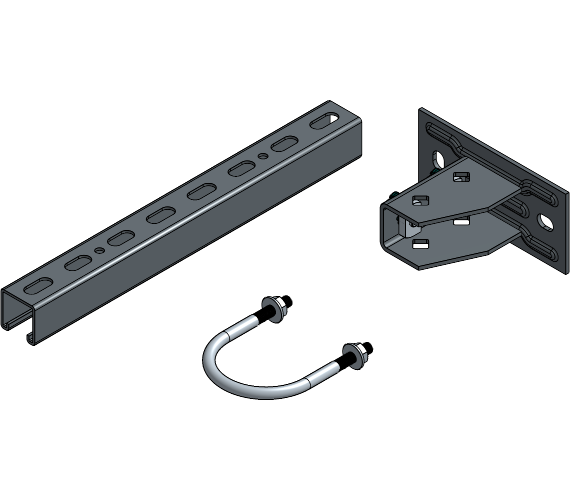

2 Components

Clamps & Couplers

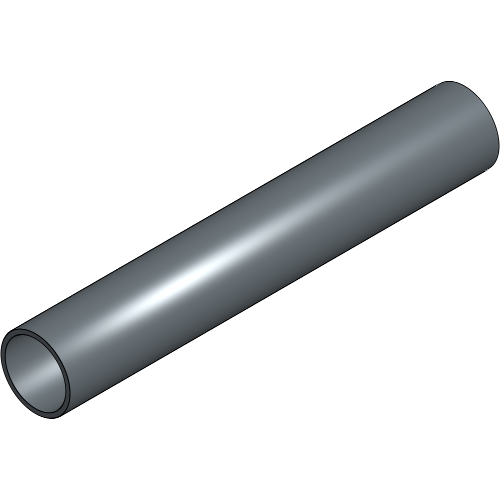

Construction Tube

Construction Tube

Article number ⌀ Length Colour Weight
8200 0661 0057 48.3/42.5 mm 6.00 m Black 3.25 kg

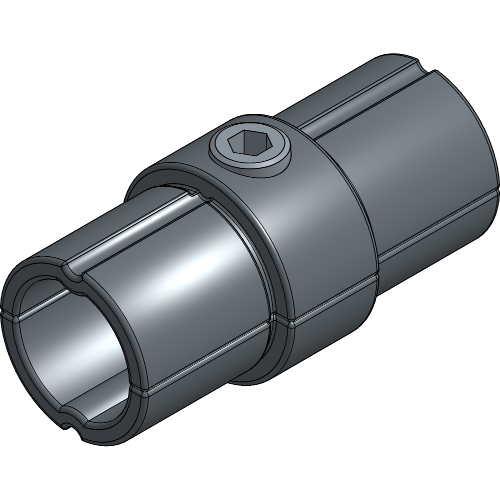

Construction Tube Inner Coupler

Construction Tube Inner Coupler

Article number Colour Weight
8200 0661 0037 Black 0.38 kg
8200 0661 0031 Alu 0.38 kg

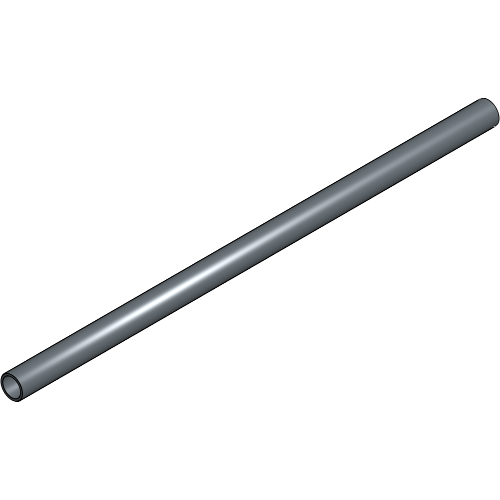

AluPipe 18 mm

AluPipe 18 mm

Article number ⌀ Length Colour Weight
8700 1018 0004 18/15 mm 6.00 m Alu 0.21 kg/m
AluPipe 25 mm

AluPipe 25 mm

Article number ⌀ Length Colour Weight
8700 1025 0047 25/19 mm 6.00 m Black 0.56 kg/m
8700 1025 0044 25/19 mm 6.00 m Alu 0.56 kg/m
AluPipe 45 mm

AluPipe 45 mm

Article number ⌀ Length Colour Weight
8700 1045 0027 45/41 mm 6.00 m Black 0.73 kg/m
8700 1045 0024 45/41 mm 6.00 m Alu 0.73 kg/m

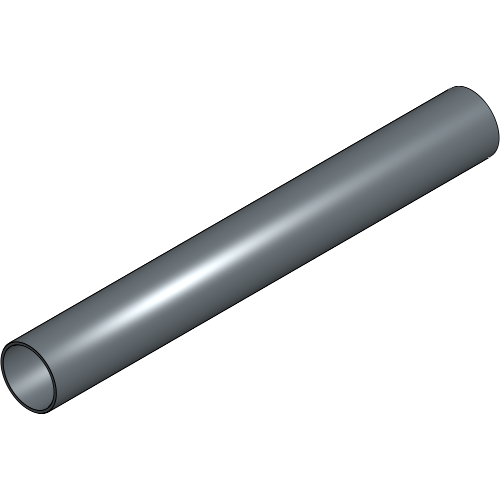

AluPipe 50 mm

AluPipe 50 mm

Article number ⌀ Length Colour Weight
8700 1050 0027 50/46 mm 6.00 m Black 0.81 kg/m
8700 1050 0024 50/46 mm 6.00 m Alu 0.81 kg/m

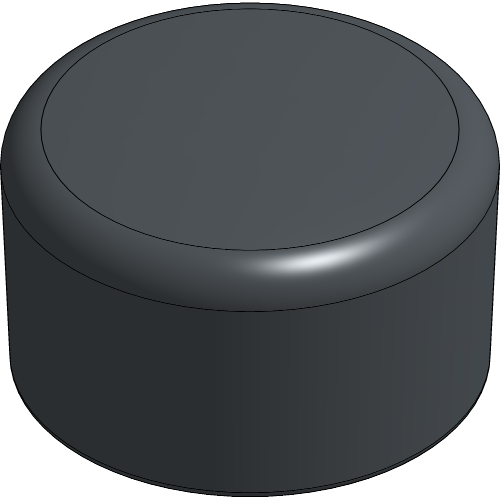

AluPipe Protection Cap

AluPipe Protection Cap

Article number ⌀ Colour Weight
8700 1145 0257 25 mm Black 0.01 kg
8700 1145 0007 45 mm Black 0.01 kg
8700 1150 0007 50 mm Black 0.02 kg

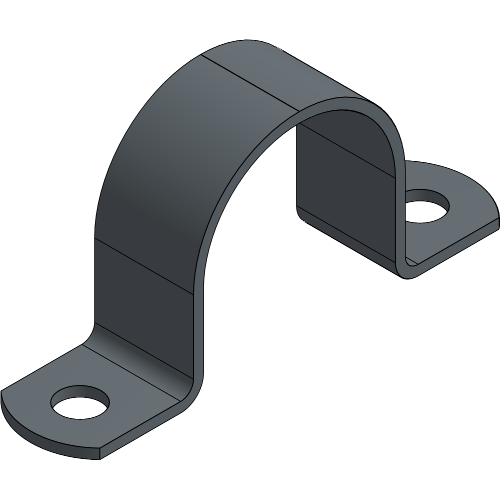

Pipe Bracket

Pipe Bracket

Article number ⌀ Colour Weight
8200 0670 0487 48.5 mm Black 0.06 kg
8200 0670 0481 48.5 mm Alu 0.06 kg
8200 0670 0507 50 mm Black 0.08 kg
8200 0670 0507 50 mm Alu 0.08 kg

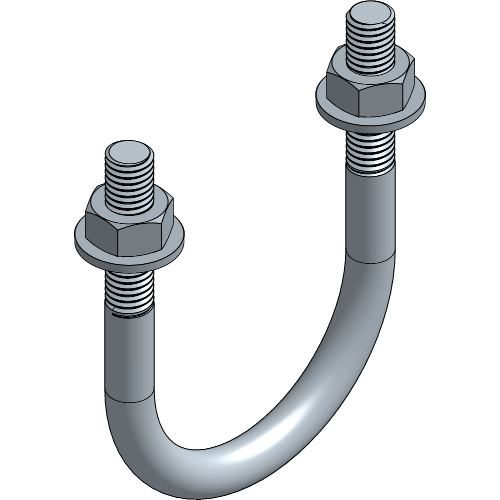

U-Bracket

U-Bracket

Article number ⌀ Colour Weight
8700 0666 0581 50 mm Galvanised 0.08 kg
8700 0666 0501 50 mm Galvanised 0.10 kg
8700 0666 0601 60 mm Galvanised 0.12 kg

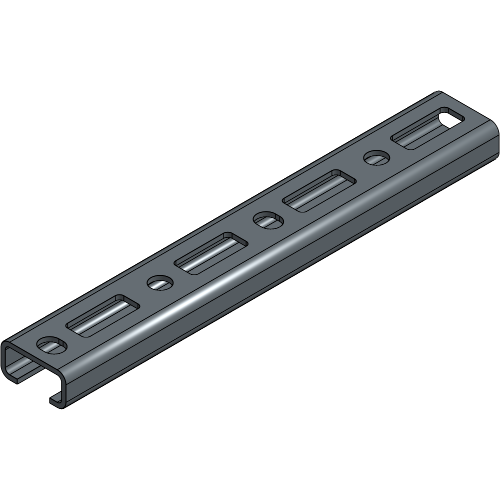

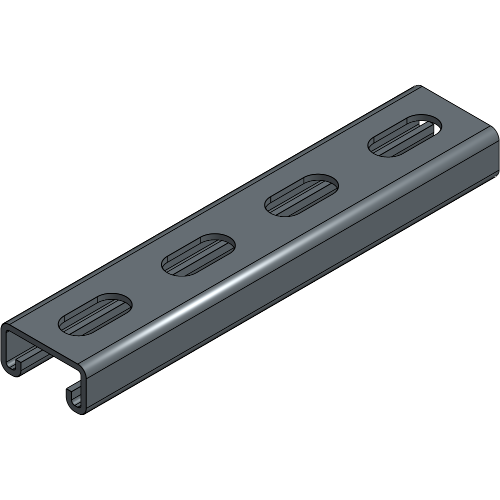

Construction Profile

Construction Profile

Article number Dimensions Length Colour Weight
8200 0010 1527 15 x 30 mm 6.00 m Black 1.15 kg
Construction Profile

Construction Profile

Article number Dimensions Length Colour Weight
8200 0010 2147 21 x 41 mm 6.00 m Black 1.78 kg
8200 0010 2141 21 x 41 mm 6.00 m Galvanised 1.78 kg

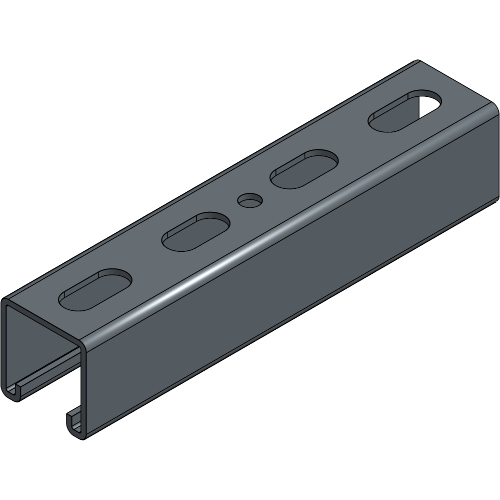

Construction Profile

Construction Profile

Article number Dimensions Length Colour Weight
8200 0010 4167 41 x 41 mm 6.00 m Black 2.41 kg
8200 0010 4161 41 x 41 mm 6.00 m Galvanised 2.41 kg
8200 0010 4163 41 x 41 mm 6.00 m White 2.41 kg

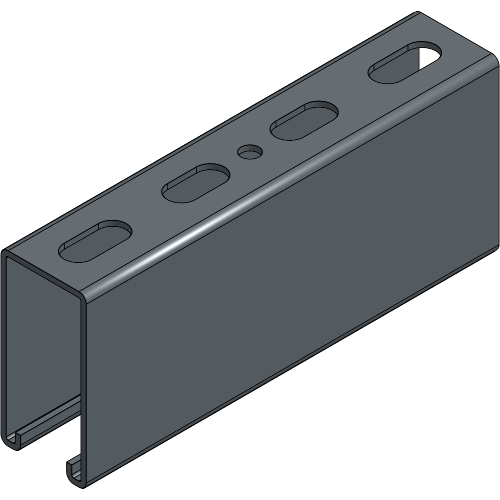

Construction Profile

Construction Profile

Article number Dimensions Length Colour Weight
8200 0010 8267 82 x 41 mm 6.00 m Black 4.08 kg
8200 0010 8261 82 x 41 mm 6.00 m Galvanised 4.08 kg

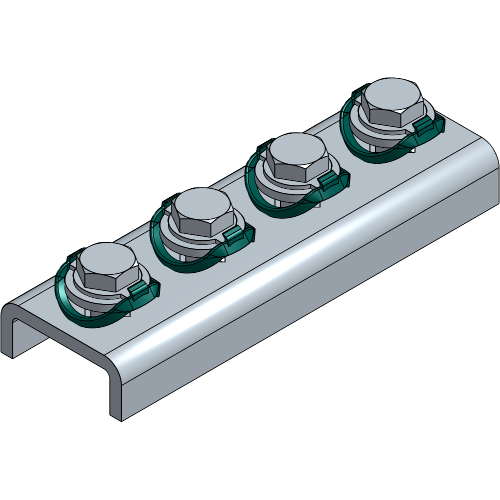

Joint Plate

Joint Plate

Article number Colour Weight
8200 0014 0187 Black 1.22 kg
8200 0014 0181 Galvanised 1.22 kg

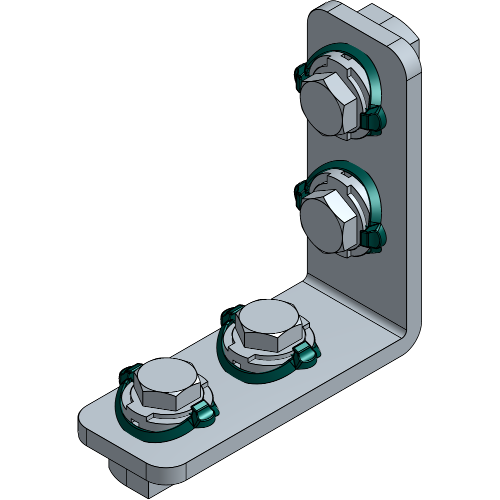

Joint Plate 90°

Joint Plate 90°

Article number Colour Weight
8200 0014 0107 Black 0.48 kg
8200 0014 0101 Galvanised 0.48 kg

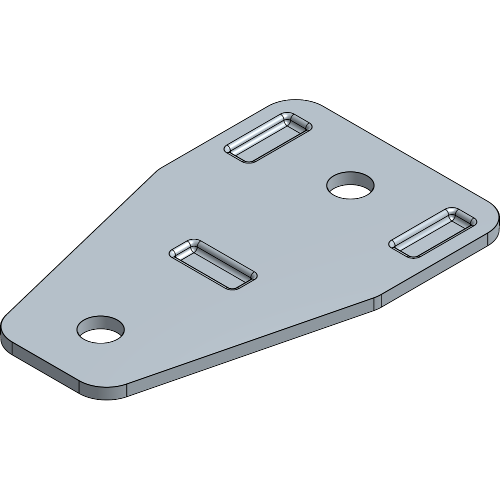

Joint Plate T

Joint Plate T

Article number Colour Weight
8200 0041 0001 Galvanised 0.70 kg

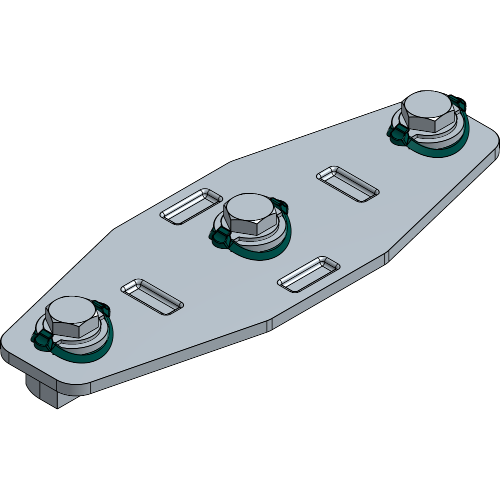

Joint Plate X

Joint Plate X

Article number Colour Weight
8200 0041 0011 Galvanised 0.70 kg

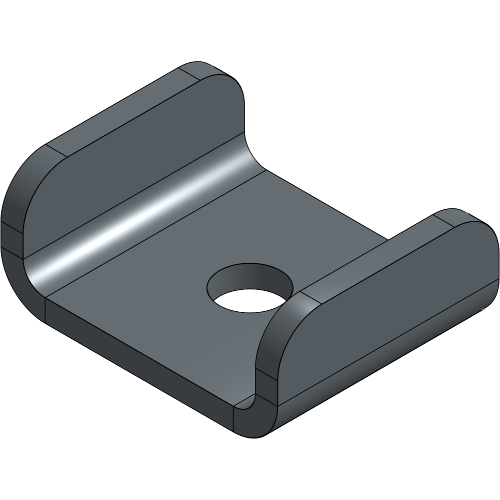

U-Washer

U-Washer

Article number Colour Weight
8200 0661 0007 Black 0.08 kg
8200 0661 0001 Galvanised 0.08 kg
8200 0661 0003 White 0.08 kg

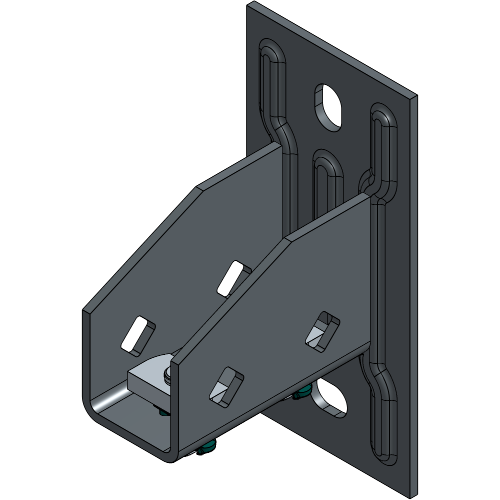

Wall Support Bracket

Wall Support Bracket

Article number Colour Weight
8200 0660 0417 Black 0.98 kg
8200 0660 0411 Galvanised 0.98 kg

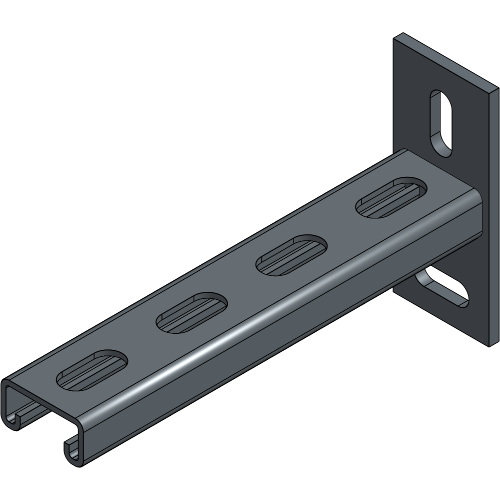

Small Wall Bracket

Small Wall Bracket

Article number Dimensions Length Colour Weight
8700 0653 0207 21 x 41 mm 0.20 m Black 0.31 kg
8700 0653 0201 21 x 41 mm 0.20 m Galvanised 0.31 kg
8700 0653 0203 21 x 41 mm 0.20 m White 0.31 kg

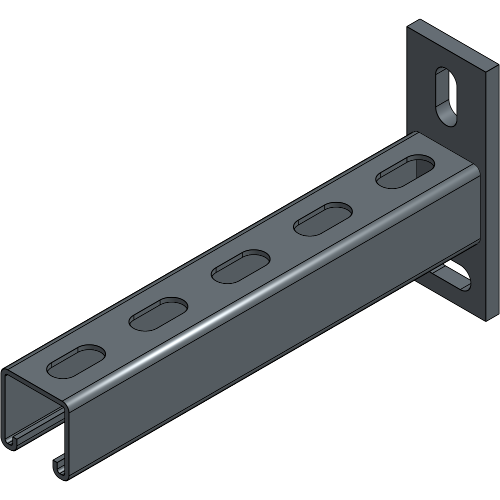

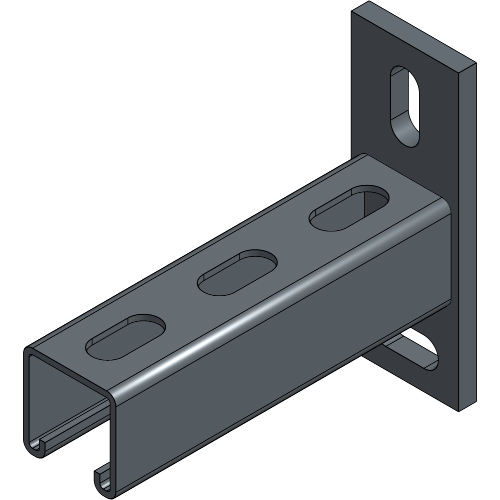

Wall Bracket

Wall Bracket

Article number Dimensions Length Colour Weight
8700 0650 0157 41 x 41 mm 0.15 m Black 0.66 kg
8700 0650 0151 41 x 41 mm 0.15 m Galvanised 0.66 kg
Wall Bracket

Wall Bracket

Article number Dimensions Length Colour Weight
8700 0650 0257 41 x 41 mm 0.25 m Black 0.86 kg
8700 0650 0251 41 x 41 mm 0.25 m Galvanised 0.86 kg
8700 0650 0253 41 x 41 mm 0.25 m White 0.86 kg
Wall Bracket

Wall Bracket

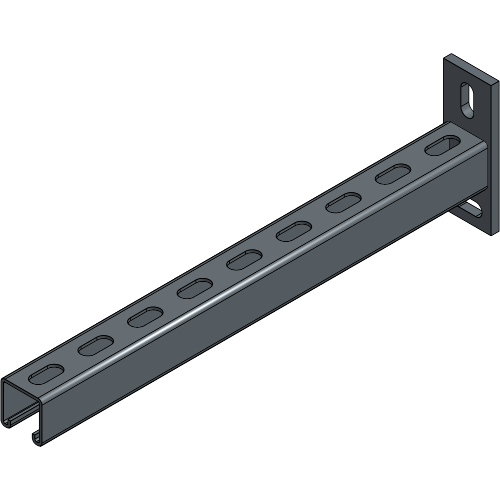

Article number Dimensions Length Colour Weight
8700 0650 0357 41 x 41 mm 0.45 m Black 1.38 kg
8700 0650 0351 41 x 41 mm 0.45 m Galvanised 1.38 kg
8700 0650 0353 41 x 41 mm 0.45 m White 1.38 kg

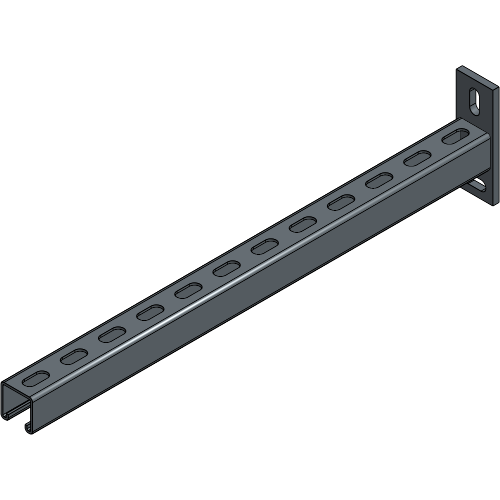

Wall Bracket

Wall Bracket

Article number Dimensions Length Colour Weight
8700 0650 0607 41 x 41 mm 0.60 m Black 1.74 kg
8700 0650 0601 41 x 41 mm 0.60 m Galvanised 1.74 kg
Wall Bracket

Wall Bracket

Article number Dimensions Length Colour Weight

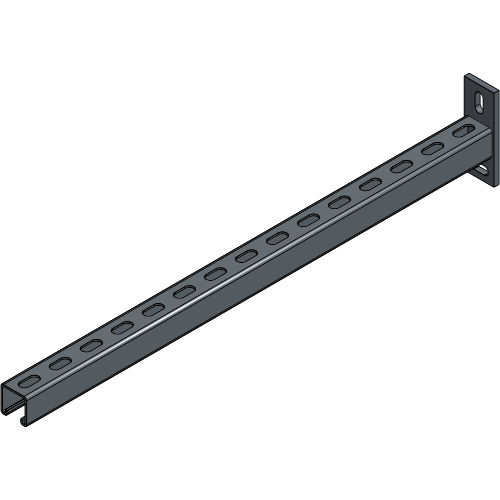

8700 0650 0757 41 x 41 mm 0.75 m Black 2.22 kg
8700 0650 0751 41 x 41 mm 0.75 m Galvanised 2.22 kg

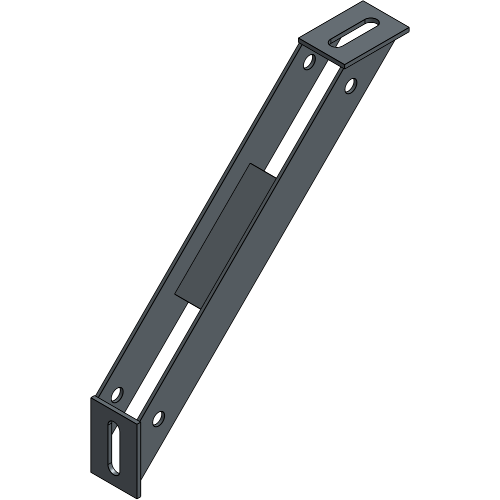

Construction Profile Support 45°

Construction Profile Support 45°

Article number Colour Weight
8700 0014 0207 Black 1.22 kg
8700 0014 0201 Galvanised 1.22 kg

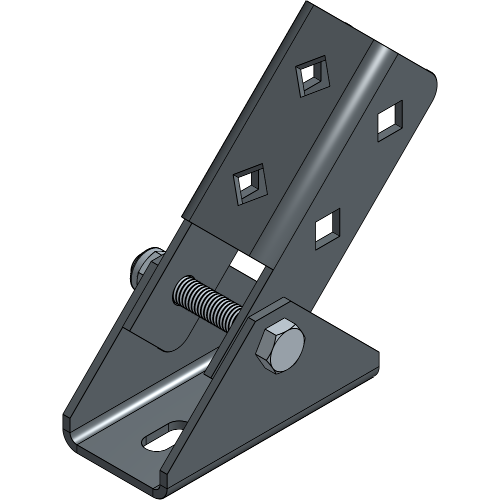

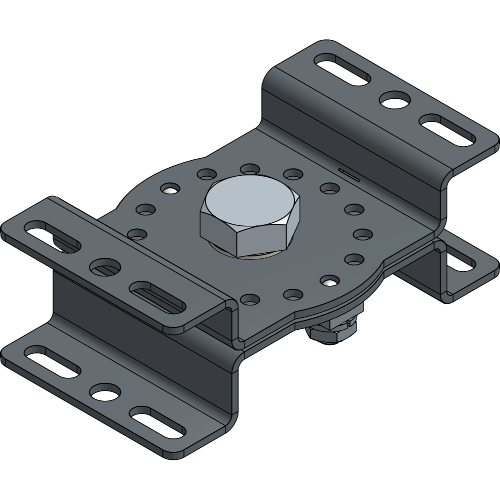

Pivoting Support Bracket

Pivoting Support Bracket

Article number Colour Weight
8700 0014 0317 Black 0.94 kg
8700 0014 0311 Galvanised 0.94 kg

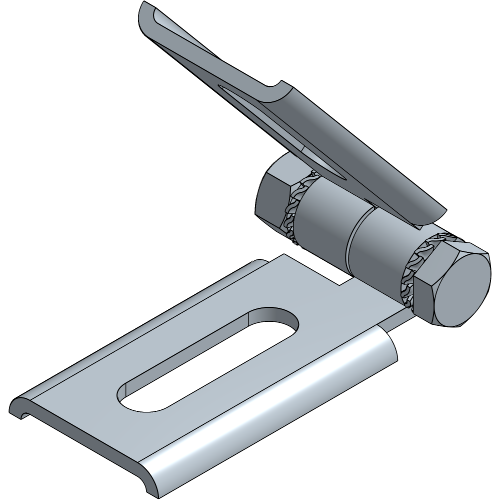

Hinged Joint Plate

Hinged Joint Plate

Article number Colour Weight
8700 2260 0801 Galvanised 0.35 kg

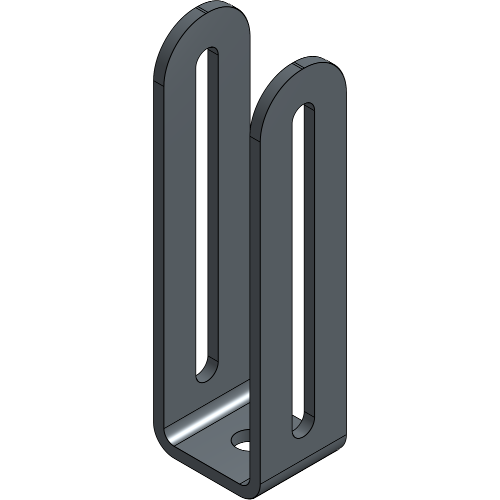

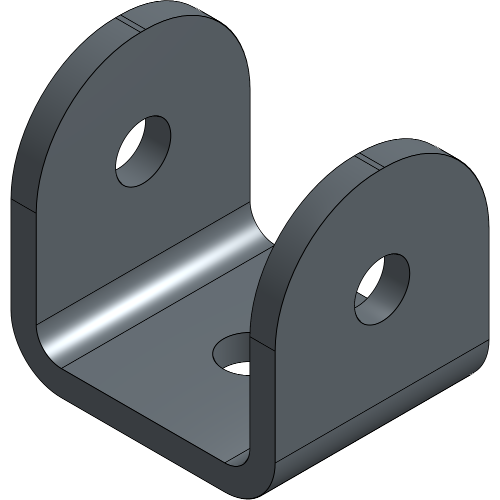

Hinge Bracket

Hinge Bracket

Article number Colour Weight
8700 2260 0507 Black 0.19 kg
Hinge Bracket

Hinge Bracket

Article number Colour Weight
8700 2260 1757 Black 0.48 kg

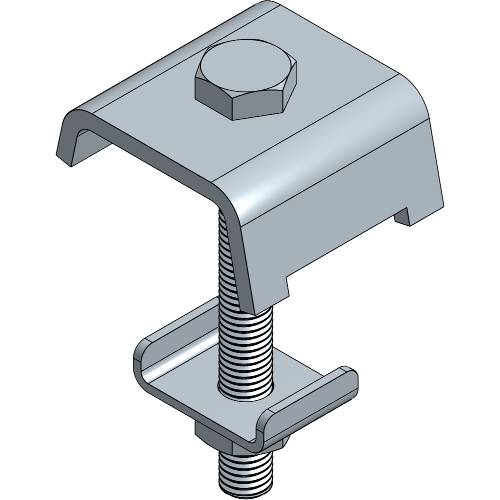

Rail Clamp

Rail Clamp

Article number Dimensions Colour Weight
8200 0661 0017 15 x 30 mm Galvanised 0.18 kg

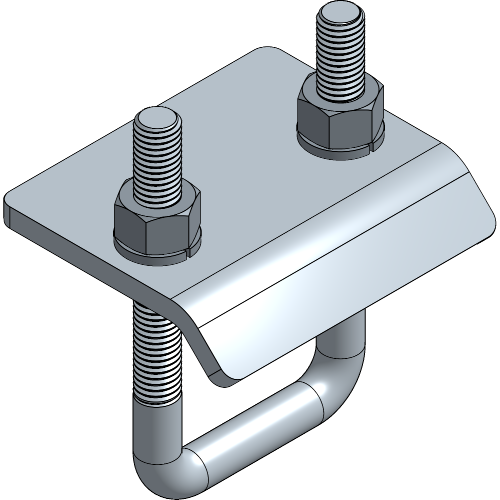

Beam Clamp

Beam Clamp

Article number Dimensions Colour Weight
8700 0661 0061 41 x 41 mm Galvanised 0.38 kg
8700 0661 0071 41 x 82 mm Galvanised 0.42 kg

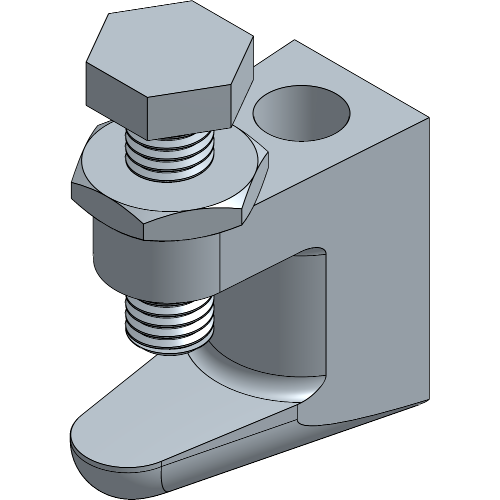

I-Beam Clamp

I-Beam Clamp

Article number Colour Weight
8700 0686 2001 Galvanised 0.14 kg
8700 0686 2101 Galvanised 0.14 kg
8700 0686 0121 Galvanised 0.14 kg

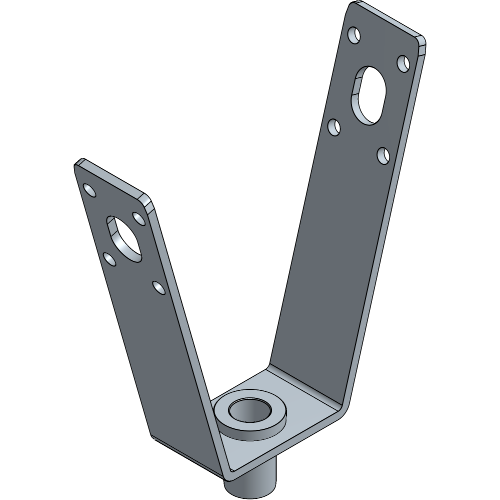

Steel Deck Profile Hanger

Steel Deck Profile Hanger

Article number Colour Weight
8700 0662 0101 Galvanised 0.15 kg

3 Construction Profile Loads

3.1 One-Point-Load

Length 21 x 41 mm 41 x 41 mm 82 x 41 mm
1.00 m 624 N 2337 N 7039 N
1.60 m 231 N 1332 N 4379 N
2.00 m 137 N 837 N 3489 N
2.60 m 66 N 473 N 2662 N
3.00 m 38 N 339 N 2178 N


3.2 Two Equal Loads

Length 21 x 41 mm 41 x 41 mm 82 x 41 mm
1.00 m 366 N 1754 N 5281 N
1.60 m 135 N 781 N 3287 N
2.00 m 80 N 491 N 2620 N
2.60 m 38 N 278 N 1722 N
3.00 m 22 N 199 N 1278 N


3.3 Uniformly Distributed Load

Length 21 x 41 mm 41 x 41 mm 82 x 41 mm
1.00 m 999 N 4675 N 14078 N
1.60 m 369 N 2131 N 8759 N
2.00 m 220 N 1340 N 6978 N
2.60 m 106 N 757 N 4695 N
3.00 m 61 N 543 N 3484 N

4 Wall Bracket Loads

4.1 One-Point-Load

Length 21 x 41 mm 41 x 41 mm
0.15 m / 2218 N
0.20 m 532 N /
0.25 m / 1329 N
0.45 m / 734 N
0.60 m / 547 N
0.75 m / 434 N


4.2 Uniformly Distributed Load

Length 21 x 41 mm 41 x 41 mm
0.15 m / 4438 N
0.20 m 1067 N /
0.25 m / 2661 N
0.45 m / 1474 N
0.60 m / 1102 N
0.75 m / 878 N
